The Most Popular Permanent Jewelry Welder™

IN STOCK • SHIPS WITHIN 1-3 BUSINESS DAYS WHEN ORDERED BY 2:00 PM MDT

More permanent jewelry artists choose the Orion mPulse than any other pulse arc welder. How do we know that? Just do a quick social media search and take notice of which welder successful artists are using. Its the Orion mPulse. And heres why:

Made in the USA. You can count on quality craftsmanship and attention to detail.
US-Based Sales and Service. When you need help were only a text or phone call away.
High Value and Quick ROI. It wont take many bracelets to pay for your Orion mPulse.
Permanent Jewelry Features. No fancy feature set; just what you need to close a link.
Easy to Learn and Use. Just use your finger to select a power level and youre ready to go.
Sets Up Quickly. You only need a few minutes to set up and prep for your customers.
Travels Easily. Its tabletop-design lets you work at jewelry parties, fairs, or in your shop.
A Jewelry Pedigree. Designed for the bench jeweler and their craft.
3-year Warranty or Forever Warranty. Take three years of coverage or subscribe to the Sunstone Circle for lifetime protection and VIP benefits.

Whats in the Box

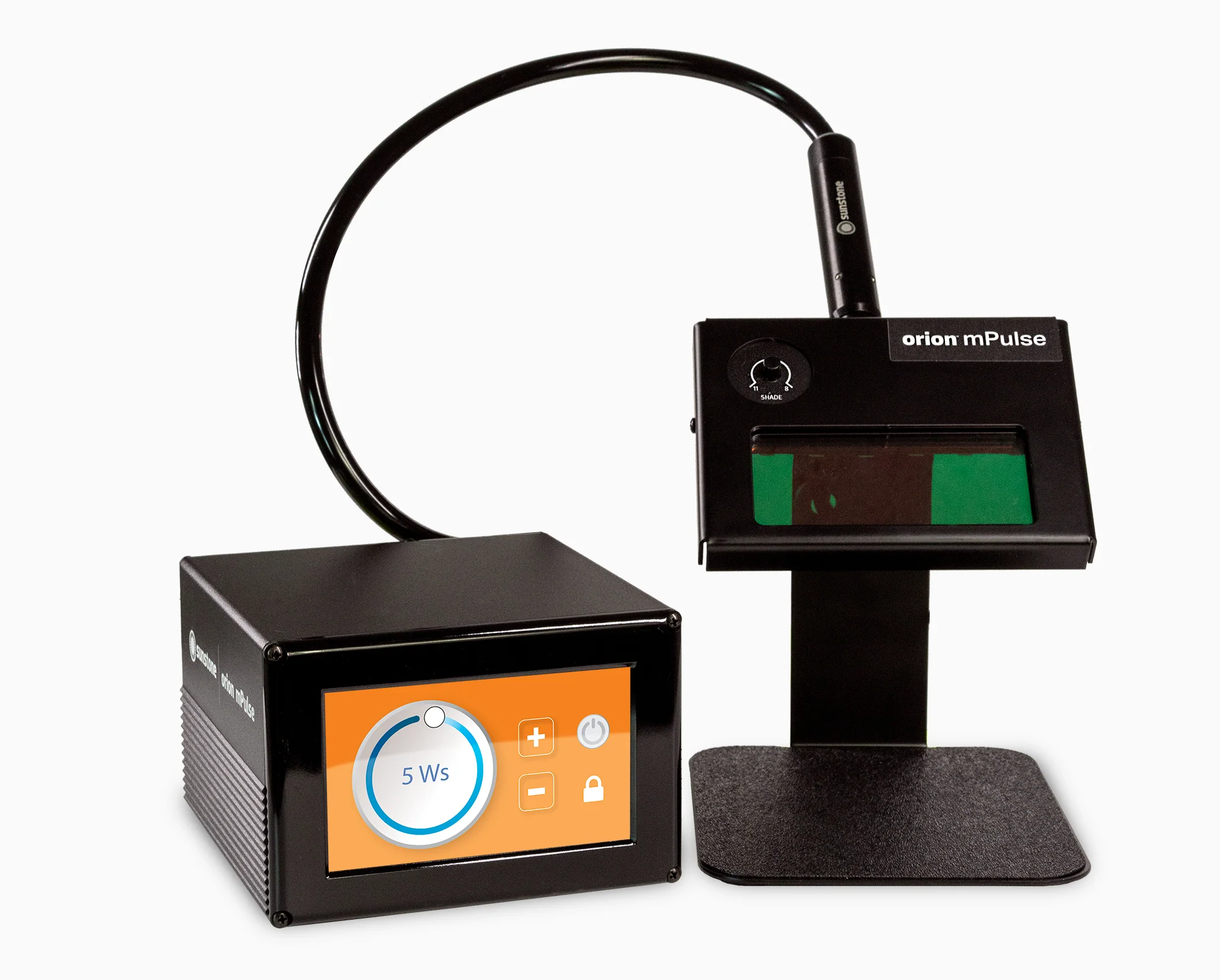

Orion mPulse permanent jewelry welder with stylus, 3-30 Joules
ADL Darkening lens system with RJ45 cable OR Advanced ADL with RJ45 cable depending upon your purchase preference
Power cord
Alligator clips (2)
Shielding gas hose
Electrodes (five 1.0 mm premium Sunstone tungsten electrodes)
Fiberglass brush

Trying to decide between the Upgraded ADL or the Basic ADL?

Watch this video here to compare the two auto-darkening lens (ADLs)

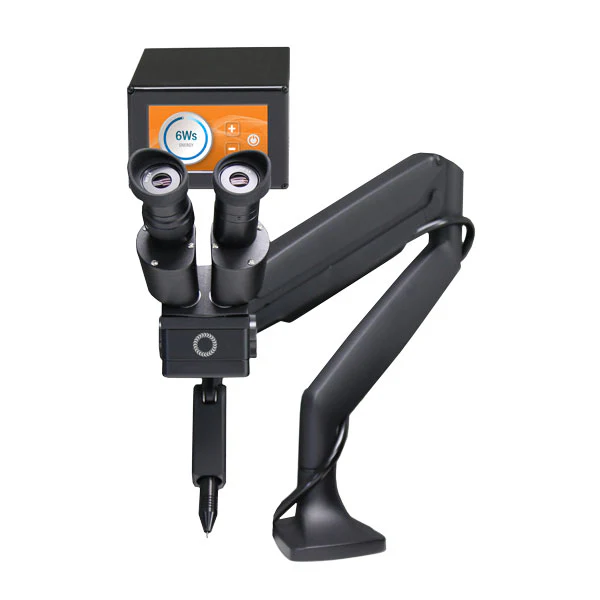

If you purchased the microscope system:

Orion microscope arm replaces ADL
Microscope arm table mount
Microscope arm support bar

You also need:

Permanent Jewelry Kit
Argon gas (premium Sunstone argon conveniently delivered to your door!)
Argon gas regulator
Pilot electrode sharpener
Magnifying lens with LED lighting
A selection of popular chain
Mobile Power Supply: Get a Goal Zero power supply for ultra mobility! Great for pop-ups!

Orion mPulse Pulse Arc Welder User Manual

Orion mPulse Pulse Arc Welder Data Sheet

How Does it Work?

Pulse arc welding (or micro TIG welding) uses electrical energy to create a plasma discharge. The high-temperature plasma, in turn, melts metal in a very small spot, a process that takes place in milliseconds. The process is clean, safe, and controllable. Pulse arc welding is perfect for permanent jewelry and closing fine chain of different metal types.

Permanent Jewelry in 6 Easy Steps

ONE: Measure Out the Chain
After your customer has chosen their preferred chain, wrap the chain around the wrist or ankle and determine a fit that is not too tight nor too loose. Mark the link on the chain you will cut.

TWO: Cut the Chain
Using the cutting pliers that come with the Sunstone Permanent Jewelry Kit, cut one side of the link in half. Do NOT cut the whole link in half. Make sure the cut link does not fall off the chain.

THREE: Prep the Link for Welding
Using the two chain pliers that come with your kit, bend the two ends of the cut link away from each other to create a gap wide enough to slide the uncut link (on the opposite side of the chain) through the cut link. Then bend the ends of the cut link back together. This step is much easier if you purchase the Orion mPulse with 5x microscopic optics.

FOUR: Keep Your Customers Safe
Place your customers wrist or ankle under the automatic darkening lens, with the lens facing the customer. Instruct others in the room not to look directly at the chain when welding. Place the protective leather patch between the chain and your customers skin to prevent a burn, which is unlikely but possible. Make sure your customer records the next step and posts to social media.

FIVE: Weld the Link Closed
On the Orion mPulse, select the power youll need to weld the link closed. If youre unsure, start with a low amount of power, like 3 joules. Using the chain pliers that come with your kit, apply pressure to both ends of the cut link to bring them together. While maintaining pressure on both ends with the pliers, touch the joint to the electrode. The Orion mPulse will create a weld. Check the weld for position and strength.

SIX: Polish the Chain
Take the fiberglass brush that comes with your kit and polish the weld. Some types of metal will leave more soot than others.

PROTECTION PLAN

The Orion mPulse can be purchased with the Sunstone Circle protection plan. For a small monthly payment you can protect your investment for as long as you remain a member, receive VIP customer service, enjoy free shipping should your welder need repairs, and more! Learn More Here.

Start Your Own Permanent Jewelry Business

The popularity and demand for permanent jewelry creates a wonderful business opportunity. You dont have to be a jeweler to be a permanent jewelry artist. With the Orion mPulse and practice you can quickly learn to close even the smallest fine chain bracelet or anklet. All you need are the right tools.

Lets take a quick look at the numbers:

Most permanent jewelry artists are investing about USD $4,000 for all the tools and supplies they need to get started. You may invest a bit more, or bit less depending upon the type of chain you sell. To breakeven, sell 100 anklets or bracelets at USD $40.

How quickly can you sell 100 bracelets or anklets?

At fairs or home parties, some permanent jewelry artists are selling 10 chains in two to three hours. Given that rate, youll break even after only 10 events! Of course, these numbers will change due to a number of different possibilities; but it does give you an idea of how quickly you can recoup your investment.

How do you sell permanent jewelry?

Fair, farmers markets, and home parties seem to have the biggest return. Or add permanent jewelry to your existing jewelry studio, beauty shop, boutique, tattoo or piercing studio.

DO YOU NEED TRAINING?

Sunstones training team is ready to help you master the Orion mPulse Permanent Jewelry Welder Visit our Training Page to learn more.
